Three Phase String Inverters – 15 to 20 kWh

Description

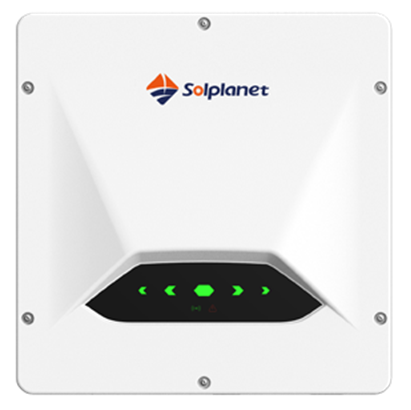

ASW LT Series

High-yield, reliable industrial solutions

Easy-to-install

Quick & easy-to-install with basic tools
Compact, wall mount and SUNCLIX connection
Quick Wi-Fi set-up with app

Reliable

International quality standards
Integrated 150% range DC/AC switch
IP65 waterproof for outdoor use

User-friendly

Smart monitoring with a user-friendly app
Discrete design that fits anywhere
Dual MPPT for flexible installation

Technical Data Sheet

ASW15K-LT

ASW20K-LT

Input (DC)

Max PV array power

19500 Wp STC

26000 Wp STC

Max input voltage

1000 V

MPP voltage range / rated input voltage

150 V to 1000 V / 630 V

Min input voltage

150 V

Initial feed-in voltage

188 V

Max operating input current

24 A / 12 A

24 A / 24 A

Max short circuit current

36 A / 18A

36 A / 36A

Number of independent MPP inputs / strings per MPP input

2 / A: 2; B: 1

2 / A: 2; B: 2

Output (AC)

Rated power

15000 W

20000 W

Max apparent AC power

15000 VA

20000 VA

AC nominal voltage

220 V / 380 V - 230 V / 400 V - 240 V / 415 V

AC voltage range

180 V to 295 V

AC grid frequency / range

50 Hz/ 45 Hz to 55 Hz – 60 Hz/55 Hz to 65 Hz

Rated grid frequency / rated grid voltage

50 Hz / 230 V

Max output current

3 x 25 A

3 x 32 A

Power factor at rated power

1

Adjustable displacement power factor

0.8 overexcited to 0.8 underexcited

Feed-in phases

1

Harmonic distortion (THD) at rated output

<3%

Efficiency

Max efficiency / European efficiency

98.5%

98.2%

Input-side disconnection device

●

Ground fault monitoring / grid monitoring

● / ●

DC reverse polarity protection / AC short circuit current capability

● / ●

All-pole-sensitive residual-current monitoring unit

●

Protection class(according to IEC 62109-1) / overvoltage category (according to IEC 62109-1)

1/AC: III; DC :ll

General data

Dimensions (W / H / D)

490/497/212.5 mm

Weight

26 kg

Operating temperature range

-25°C – +60°C

Noise emission (typical)

< 45 dB(A)

Self-consumption (at night)

<1W

Topology

Transformerless

Cooling concept

Convection

Degree of protection (according to IEC 60529)

IP65

Climatic category (according to IEC 60721-3-4)

4K4H

Max permissible value for relative humidity (non-condensing)

100 %

Max operating altitude

3000 m

Features

DC connection

SUNCLIX (Phoenix Contact)

AC connection

Plug-in Connector

Mounting type

Wall-mounting bracket

LED Indicators (Status / Fault/ Communication)

●

Communication interface^{1 & 2}

Wi-Fi / RS485

Certificates and approvals (more available on request)

CE, EN50549 ,IEC62109, IEC62116, IEC61727, IEC61683, IEC60068, IEC61000, NB/T 32004

● Standard features / ○ optional features / – not available
1- Zero export installations supported with 2-pin RS485 for connection to approved smart meters
2- DRED supported with RS485 communication for Australia & New Zealand

Cloud & App

PV Plant monitoring plays an important role in our approach to revolutionize access to solar energy. It saves you time and money by reducing PV plant downtime. Your energy generation and consumption are presented in simple, easy-to-read graphs for complete plant management.

Real-time and historical data are readily available via our cloud-based monitoring portal, allowing you to compare your current performance to past results and projected goals. AISWEI Cloud, our new online monitoring portal, is perfect for home owners, business owners and PV developers who want to monitor their PV Plants from anywhere in the world.

Easy-to-install
