Single Phase String Inverters – 3 to 5 kWh

Description

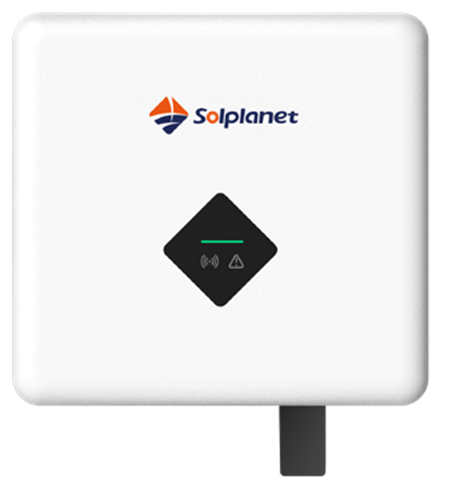

ASW S Series

Perfect for home & small business systems.

Easy-to-install

Quick & easy-to-install with basic tools
Compact, wall mount and SUNCLIX connection
Quick Wi-Fi set-up with app

Reliable

International quality standards
Integrated 150% range DC/AC switch
IP65 waterproof for outdoor use

User-friendly

Smart monitoring with a user-friendly app
Discrete design that fits anywhere
Quiet performance with low 25dB levels

Technical Data Sheet

ASW3000-S

ASW3680-S

ASW4000-S

ASW5000-S

Input (DC)

Max PV array power

4500 Wp STC

5520 Wp STC

6000 Wp STC

7500 Wp STC

Max input voltage

580 V

MPP voltage range / rated input voltage

80 Vto 550 V / 360 V

Min input voltage

80 V

Initial feed-in voltage

100 V

Max operating input current

12 A / 12 A

Max short circuit current

18 A / 18 A

Number of independent MPP inputs / strings per MPP input

2/1

Output (AC)

Rated power

3000 W

3680 W

4000 W

5000 W

Max apparent AC power

3000 VA

3680 VA

4000 VA

5000 VA

AC nominal voltage

220 V / 230 V / 240 V

AC voltage range

180 Vto 290 V

AC grid frequency / range

50 Hz/ 45 Hz to 55 Hz – 60 Hz/55 Hz to 65 Hz

Rated grid frequency / rated grid voltage

50 Hz/230 V

Max output current

15 A

16 A

20 A

22.7 A*

Power factor at rated power

1

Adjustable displacement power factor

0.8 overexcited to 0.8 underexcited

Feed-in phases

1

Harmonic distortion (THD) at rated output

<3%

Efficiency

Max efficiency / European efficiency

97.85%/97.3%

97.85%/97.5%

97.85%/97.6%

Input-side disconnection device

●

Ground fault monitoring / grid monitoring

● / ●

DC reverse polarity protection / AC short circuit current capability

● / ●

All-pole-sensitive residual-current monitoring unit

●

Protection class(according to IEC 62109-1) / overvoltage category (according to IEC 62109-1)

1/AC: III; DC :ll

General data

Dimensions (W / H / D)

376/355/145 mm

Weight

12 kg

Operating temperature range

-25°C – +60°C

Noise emission (typical)

< 25 dB(A))

Self-consumption (at night)

<1W

Topology

Transformerless

Cooling concept

Convection

Degree of protection (according to IEC 60529)

IP65

Climatic category (according to IEC 60721-3-4)

4K4H

Max permissible value for relative humidity (non-condensing)

100 %

Max operating altitude

3000 m

Features

DC connection

SUNCLIX (Phoenix Contact)

AC connection

Plug-in Connector

Mounting type

Wall-mounting bracket

LED Indicators (Status / Fault/ Communication)

●

Communication interface^{1 & 2}

Wi-Fi / RS485

Certificates and approvals (more available on request)

CE, IEC62109, IEC61000, AS/NZS 4777, EN50549, VFR 2014 & UTE C15-712-1, CEI 0-21, C10/C11, NBR16149, IEC61727, IEC62116, IEC61683

● Standard features / ○ optional features / – not available
* For AS/NZS 4777.2:2015 Maximum output current is 21.7A
1- Zero export installations supported with 2-pin RS485 for connection to approved smart meters
2- DRED supported with RS485 communication for Australia & New Zealand

Cloud & App

PV Plant monitoring plays an important role in our approach to revolutionize access to solar energy. It saves you time and money by reducing PV plant downtime. Your energy generation and consumption are presented in simple, easy-to-read graphs for complete plant management.

Real-time and historical data are readily available via our cloud-based monitoring portal, allowing you to compare your current performance to past results and projected goals. AISWEI Cloud, our new online monitoring portal, is perfect for home owners, business owners and PV developers who want to monitor their PV Plants from anywhere in the world.

Easy-to-install
