Description
Why use a Super Capacitor?
Super Capacitors (Super Caps) are the next-generation energy storage with advanced performance where it matters most. They have a lifespan of more than 30 years with no capacity degradation. A high charge and discharge rate with more than 98% round trip efficiency at a 100% depth of discharge make Super Caps the most efficient way to store energy.
How do Super Caps work?
Unlike batteries, Super Caps are manufactured by using a Graphene-based composite to store energy electrostatically. Super Caps store more energy and have higher outputs than batteries. Combined with high performance and long-term stability, they are the ideal safe energy storage technology.
A Magneto™ Super Capacitor has the lowest total cost of ownership over its lifespan and is guaranteed, backed and serviced by our national network and distribution centres.
Let’s Compare…
General Performance |
||||||||||||
| Lead Acid Batteries | Lithium | Super Capacitors | ||||||||||
| Charging time | 5 – 10 Hours | 1 – 5 hours | <30 min | |||||||||
| Life Cycles | 700 to 1200 | 3000 to 6000 | Min 50 000 | |||||||||
| Efficiency | 30% | 85% | >98% | |||||||||
| Design Life | 18 Months to 3 Years | 5 to 15 Years | 30 to 40 Years | |||||||||
| Lifespan Capacity loss | >80% | >25% | 0% | |||||||||
| Installation requirements | Ventilation and Cooling | Ventilation and Cooling | No Ventilation or Cooling | |||||||||
| Safety | Toxic and Flammable | Toxic and Flammable | Non-Toxic, Non-Flammable | |||||||||
| Comparisons are based on an average 1 full cycle per day | ||||||||||||
|
PERFORMANCE SPECIFICATIONS |
|||||||||||||

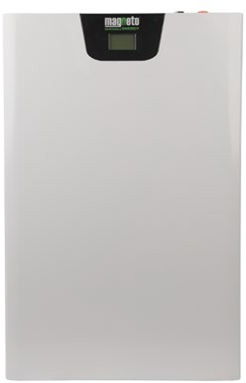

| Model | Wall Mount 5KWh | Wall Mount 15KWh 100A | Wall Mount 15KWh 200A | ||||||||||
| Total capacity | 5kWh | 15kWh | 15kWh | ||||||||||
| Nominal Voltage | 48V/DC | ||||||||||||
| Maximum Charge Voltage | 58V/DC | ||||||||||||
| Discharge Cut-off Voltage | 37.8V/DC | 39.2V/DC | 37.8V/DC | ||||||||||
| ESR/AC @1KHz 50% SOC | <10mΩ | <6mΩ | <10mΩ | ||||||||||
| Max. Continuous Charge Current | 100A | 200A | |||||||||||
| Max. Continuous Discharge Current | 100A | 200A | |||||||||||
| Cells Self-discharge Rate | 2% per month | ||||||||||||
| Projected Cycle Life (25°C) | 50,000 times | ||||||||||||
| Round Trip Efficiency | 98% | 95% | |||||||||||
| Recommended Depth of Discharge | ≤90% | ||||||||||||
| Maximum Depth of Discharge | 100% | ||||||||||||
| Cooling Method | Natural | ||||||||||||
| Shell Material | Metal and ABS plastic | ||||||||||||
| Parallel Connection | Up to 5 sets | ||||||||||||
| Monitoring Data | System Voltage, Current, Temperature, SOC, SOH, Cycle, Cell’s Voltage | ||||||||||||
| Warranty | 10 Years | ||||||||||||
| COMPLIANCE INFORMATION | |||||||||||||
| Safety | IEC62619, IEC62040 | ||||||||||||
| Transport | UN38.3, MSDS | ||||||||||||
| CE | EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013 |
||||||||||||
| Environmental | RoHS | ||||||||||||
| Compatible Inverters | Magneto Hybrid, SMA, Sungrow, Goodwe | ||||||||||||
| ENVIRONMENTAL SPECIFICATIONS | |||||||||||||
| Environmental Protection | IP20 | ||||||||||||
| Operating Humidity | 0~90% RH Non-condensing | ||||||||||||
| Charge Temperature | 0°C~+55°C | ||||||||||||
| Discharge Temperature | -20°C~+60°C | ||||||||||||
| Storage Conditions | -20°C~+40°C, 25% ~ 95%RH, SOC>30%, one full charge needed per two months | ||||||||||||
| MECHANICAL SPECIFICATIONS | |||||||||||||
| Model | Wall Mount 5KWh | Wall Mount 15KWh 100A | Wall Mount 15KWh 200A | ||||||||||
| Weight | 65kg | 116kg | 116kg | ||||||||||
| Dimensions | 470 x 675 x 194 (mm) | 700 X 174 X 765 (mm) | 700 X 174 X 765 (mm) | ||||||||||
| Mounting Options | Wall / Floor | ||||||||||||
